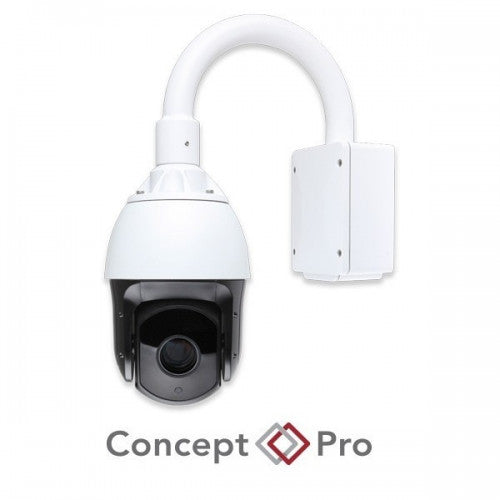

Concept Pro 2MP AHD 20x PTZ Camera

Concept Pro PTZ, High Speed Dome 20x Zoom IR 1080P Enhanced Low Light AHD

The Concept Pro 2MP AHD 20x PTZ Camera (CP-HSD20-AHD) is a 1080P 6 in 1 high speed dome with 20x optical zoom and a 150m IR range. The camera can be programmed with 255 preset positions and up to 8 patterns or groups allowing for virtually hands-free operation and can integrate with onsite intruder alarm systems through 8 alarm inputs and 4 outputs which are easily accessible in the function box. Additionally, the camera offers 360 degrees-per-second rotation speed ensuring movement remains responsive even when operated remotely from the coaxitron DVR (VXHAHD) or RS485 keyboard.

	Enhanced Low Light Performance Enhanced Low-Light harnesses Sony’s Starvis technology to produce clear and crisp colour images where light is at a premium, this ensures our products with Enhanced Low-Light stay in colour for longer.
	Dynamic Design The external PTZ have the camera board in the back box in the housing and is specifically designed to be interchangeable from AHD and IP, a low lost and low maintenance way to upgrade at a later date. All external PTZs are also dual power and the IP PTZs support CVBS and the AHD PTZ are not only 4in1 but also support EX-SDI and HD-SDI which can be toggled simply through a DIP switch.
	Superior Image Quality through the zoom Each camera will retain image focus when they zoom and micro-stepping technology makes the Pan and Tilt motion smooth, even at maximum optical zoom
	Parking Action The Concept Pro 2MP AHD 20x PTZ Camera (CP-HSD20-AHD) can be configured to run a specified preset, scan, pattern or group after a defined period of inactivity.

Other Features

• 255 Presets
• 8 Groups
• 20x Optical Zoom, 32x Digital Zoom
• Home Position (Idle/Parking Action)
• DC Power Output for ancilliary devices
• Coaxitron Control from VXHAHD and VXHAHDM
• Lighting and Power Surge Protection
