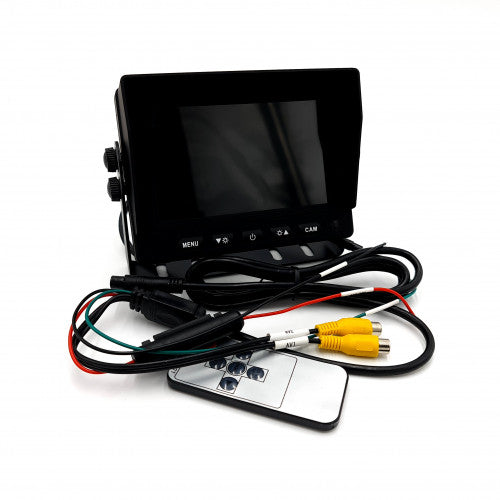

5" Digital LED Monitor, High Res Panel RCA 12-36V 16:9 mCCTV

Specifications

Model number: VLED506 (with shade)

Screen Ratio

 5" digital panel ,16:9

Back Light

LED, 500cd/㎡

Resolution

800xRGBx480

function

Light sensor automatic adjustment(optional)

Compatible system

NTSC & PAL (automatically)

OSD control

Colour, Brightness, Contrast, Volume, Language

(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

View angel

Hor. L(70) R(70)   Ver. UP(50) DOWN(70)

Image reversion

UP/Down and Left/Right

Power requirement

12-32V DC

Power consumption

5W

Storage temperature

-30〜80℃

Working temperature

-20℃ to 70℃

Size

140*102*26(56)mm

Exterior colour

Black rubberised texture, Detachable sunshade & Metal U type bracket

AV Inputs

2 way video input, 2 way audio input，1 ways Trig function,

AV Inputs  （Optional）

3 way video input,2 way audio input，3ways Trig function

Optional features(1)

4 pin aviation plug 2 way video input,

Monitor And Camera Connector

 RCA/ 4pin connector (Optional)

Accessories

Remote controller, Power supply cable , User manual, Bracket
